Products

Copper Alloy Powders

HF-2(SAE-792) , ISO CuPb10Sn10

This material is best suited for bushings and washers subjected to high impact and vibratory loads. In most cases it is used with high impact machinery. It operates best with hardened shaft.

Specifications

  • Tin: 9-11%
  • Lead: 9-11%
  • Copper: Balance

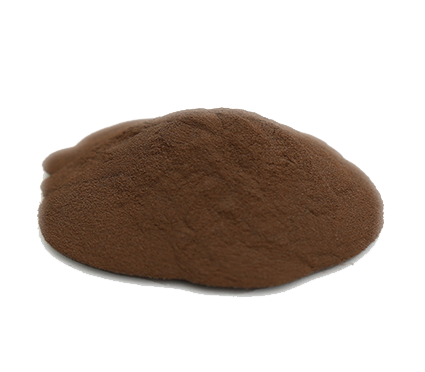

HF2 Powder

HF-16(SAE-794), ISO CuPb22Sn4

High fatigue strength and shock resistance, suitable for high speed shafts, oscillating or rotating motion hard shaft desirable, normally overlay plated when used in bearing application.

Specifications

  • Tin: 2-4%
  • Lead: 23-27%
  • Copper: Balance

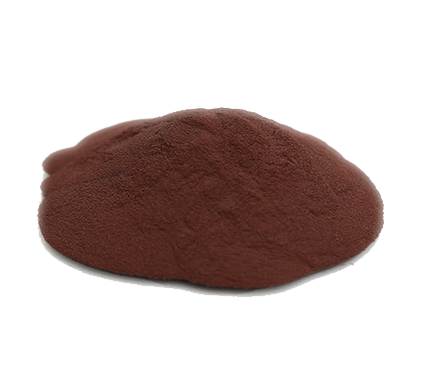

HF16 Powder

H-24(SAE-49) ISO CuPb24Sn

High fatigue strength, normally platted with an overlay when used in bearing application and in this from may be operated with hard or soft shafts, susceptible to corrosion by degraded oil when not overlay plate.

Specifications

  • Tin: 1.75-2.75%
  • Lead: 21-27%
  • Copper: Balance

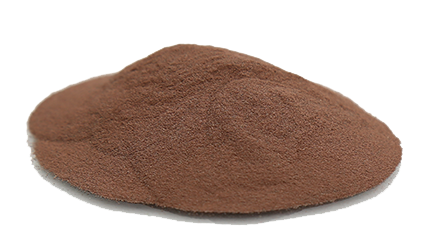

H24 Powder

LF-8

Contemporary designs represent an enormous challenge to modern-day bearing materials because, frequently, zero maintenance is expected under severe to extreme conditions as well as under maximum loads. It is the first of a kind Lead free material that is used to make bushes for new generation cars which uses bushes made from Lead free content.

Specifications

  • Tin: 7.2-9%
  • Nickle: 0.7-1.3%
  • Copper: Balance

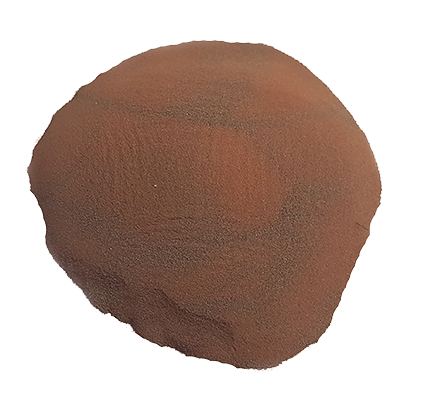

LF8 Powder

Bimetal Strips

Single strand tandem line capable of manufacturing Copper Lead Tin alloy Bimetal Strips of 0.50 mm ~ 5.50 mm finished Steel with Alloy thickness of 0.25 ~ 1.50 mm of Width 70 mm ~165 mm

Dimensional Range and Tolerances Sintered Bimetal Strip

  • Steel Thickness(mm): 0.5-4.70%
  • Lining Thickness(mm): 0.25-1.5%
  • Usable Width(mm): 178 max
  • Thickness Tolerances(mm): ±0.025

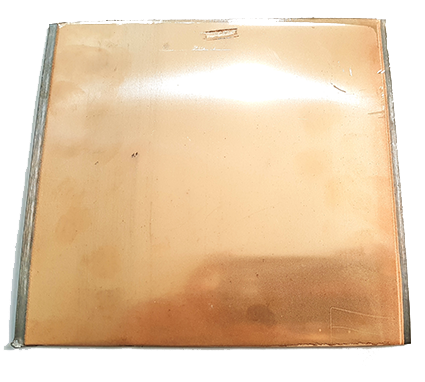

LF8 Strip
